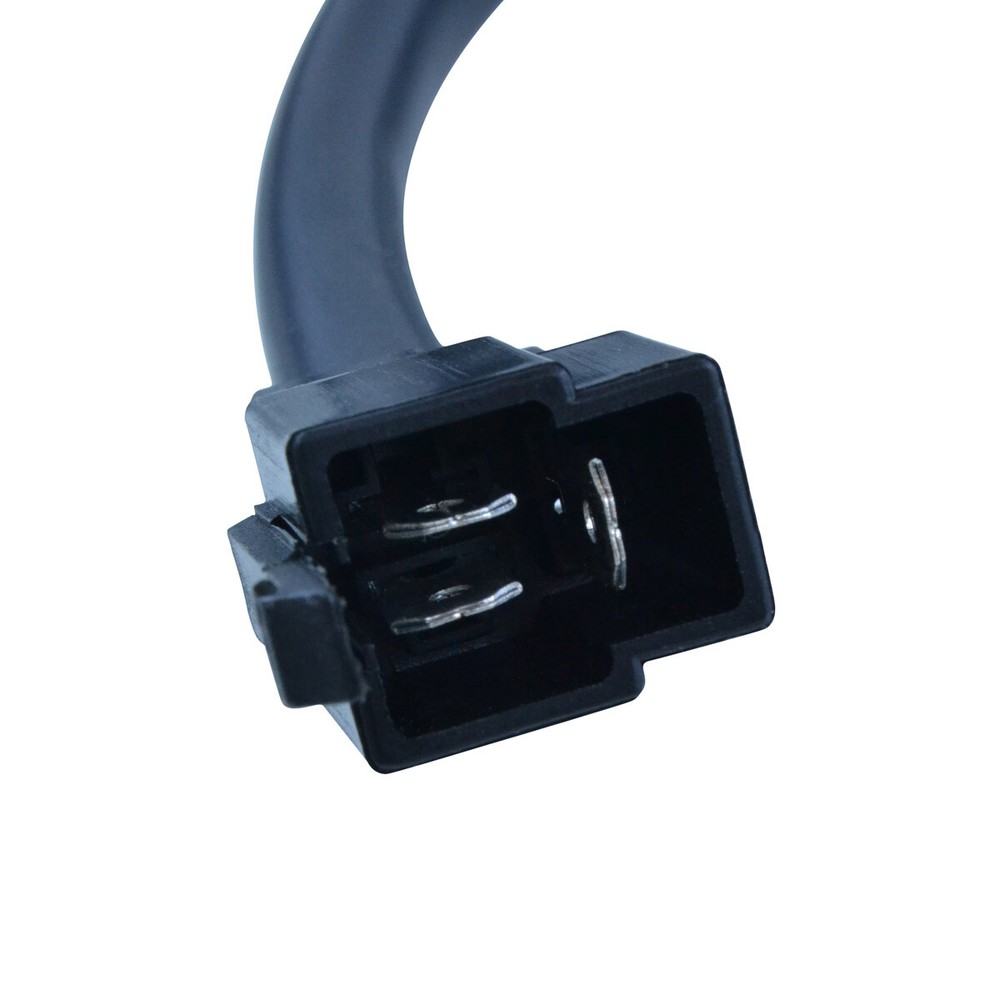

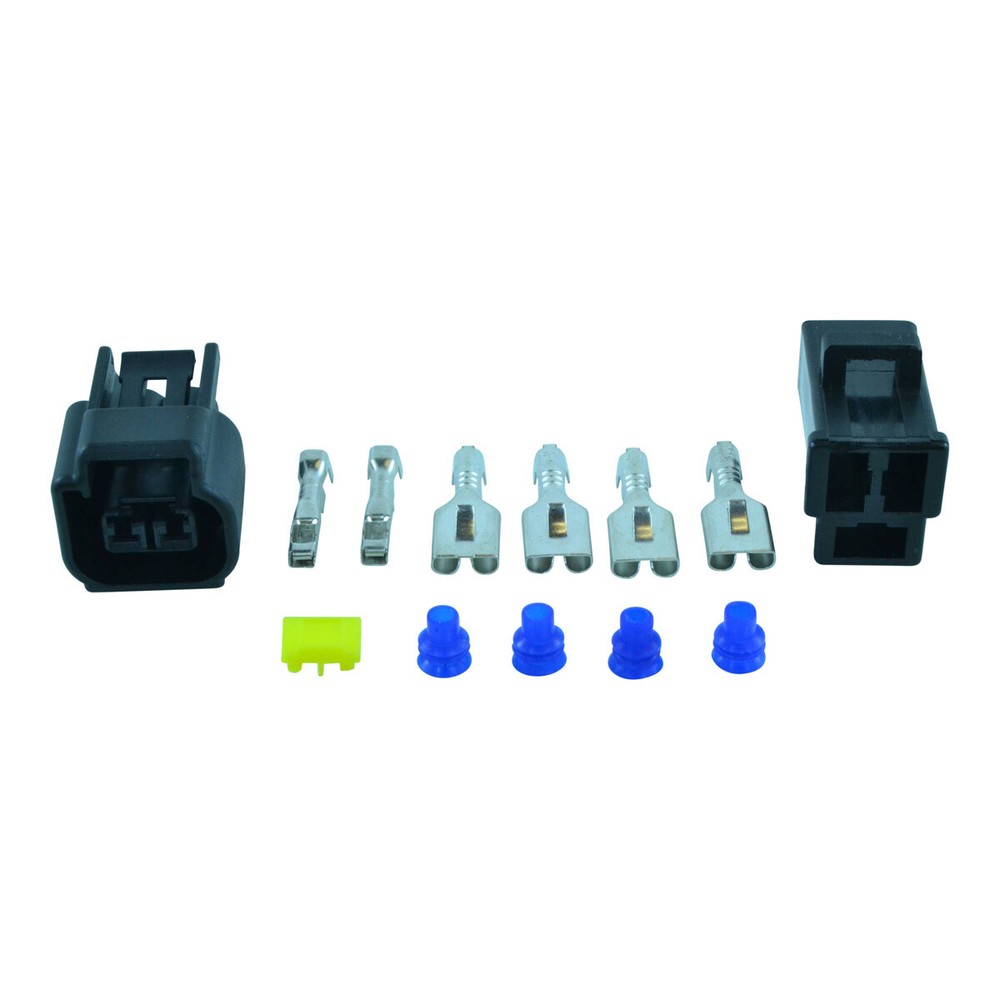

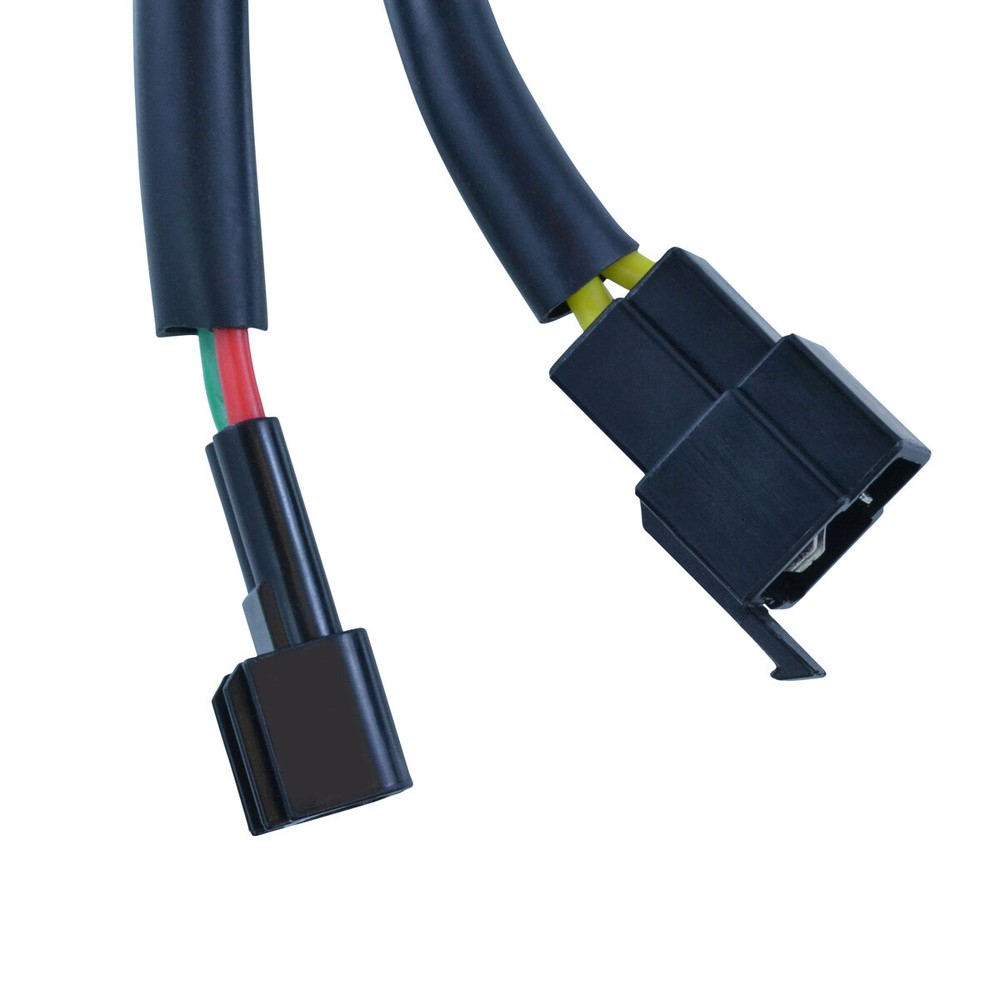

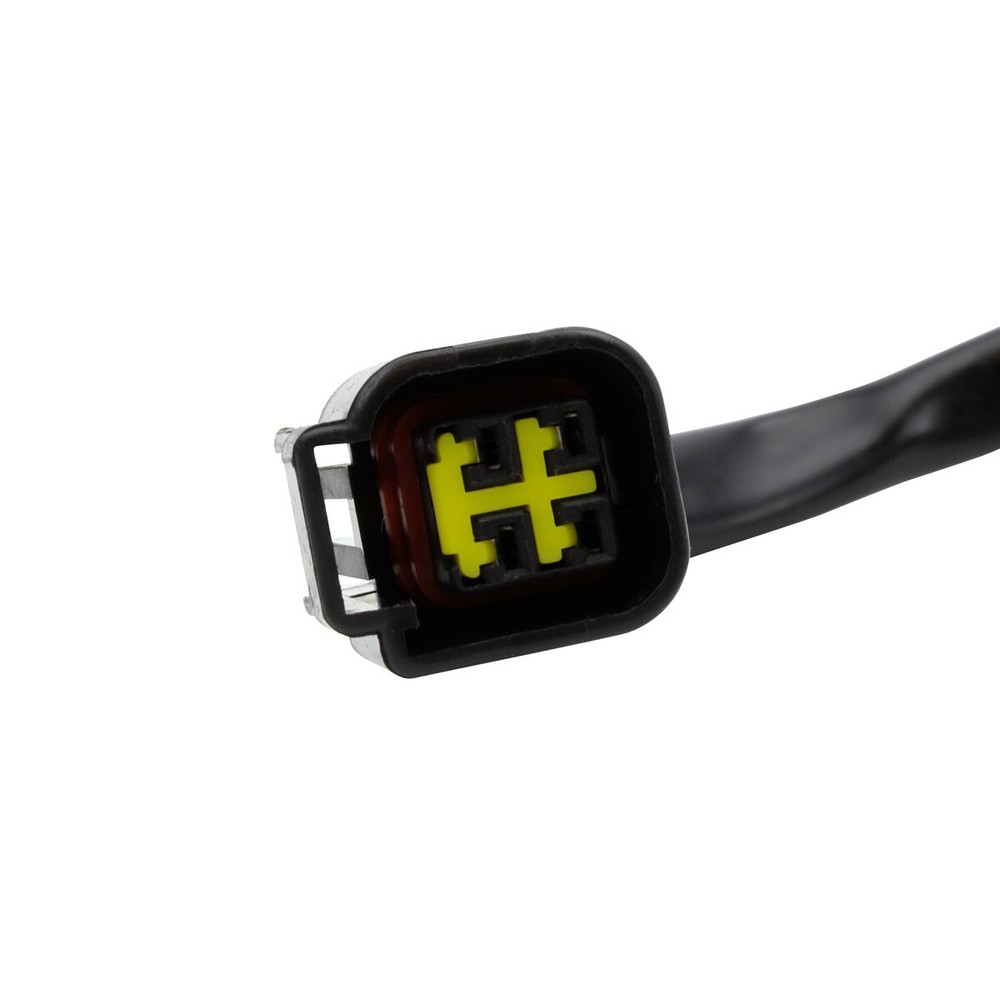

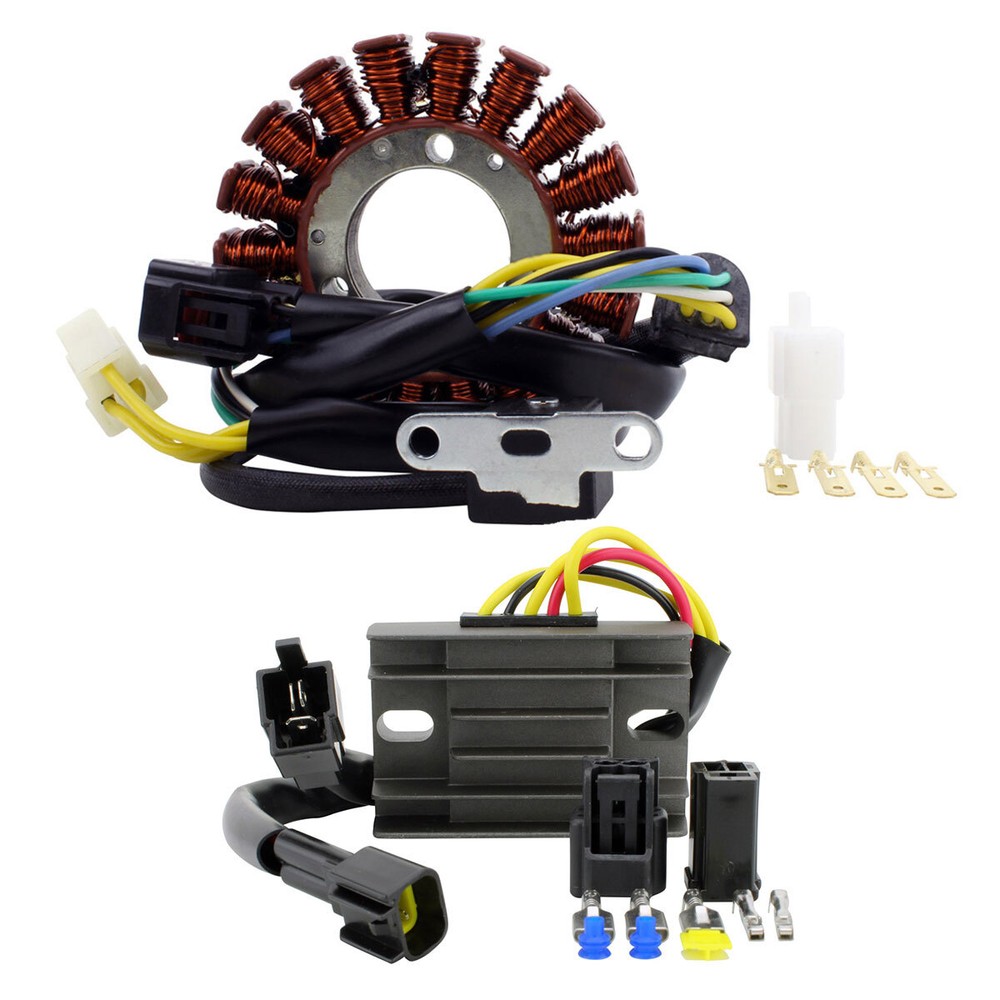

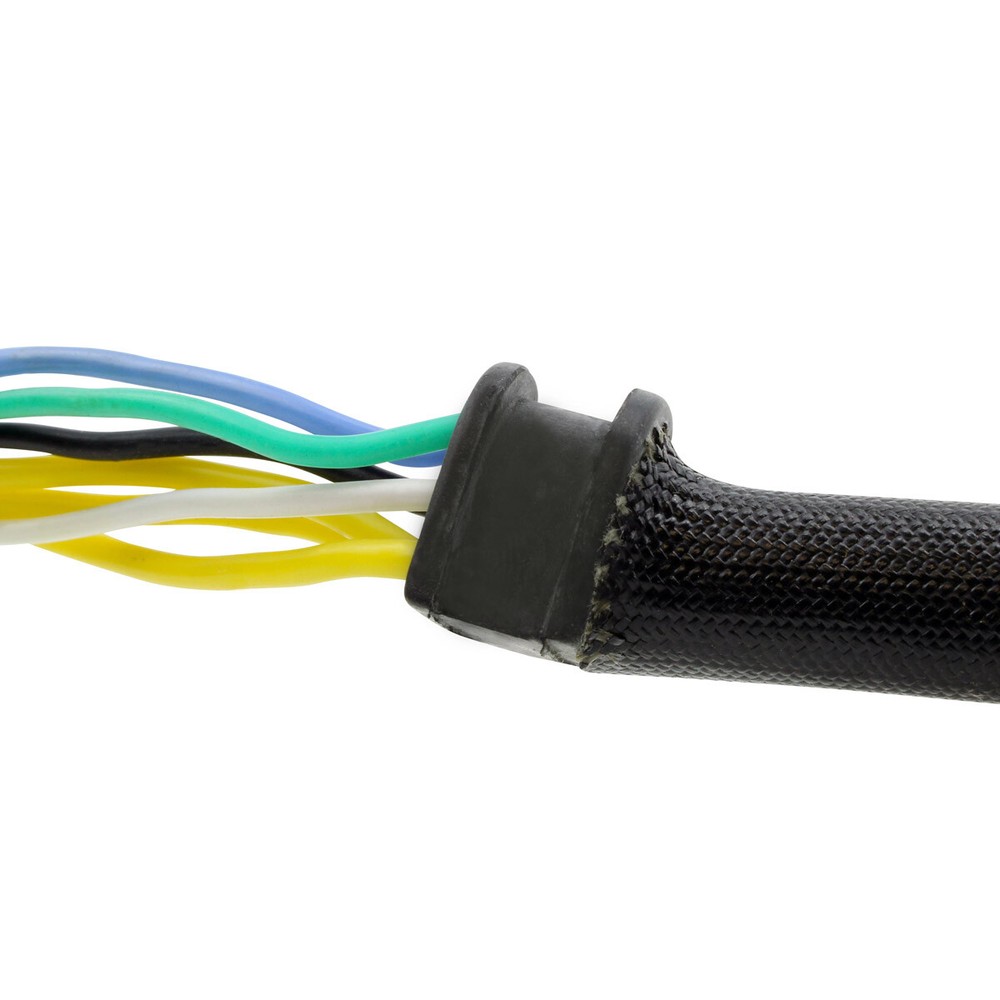

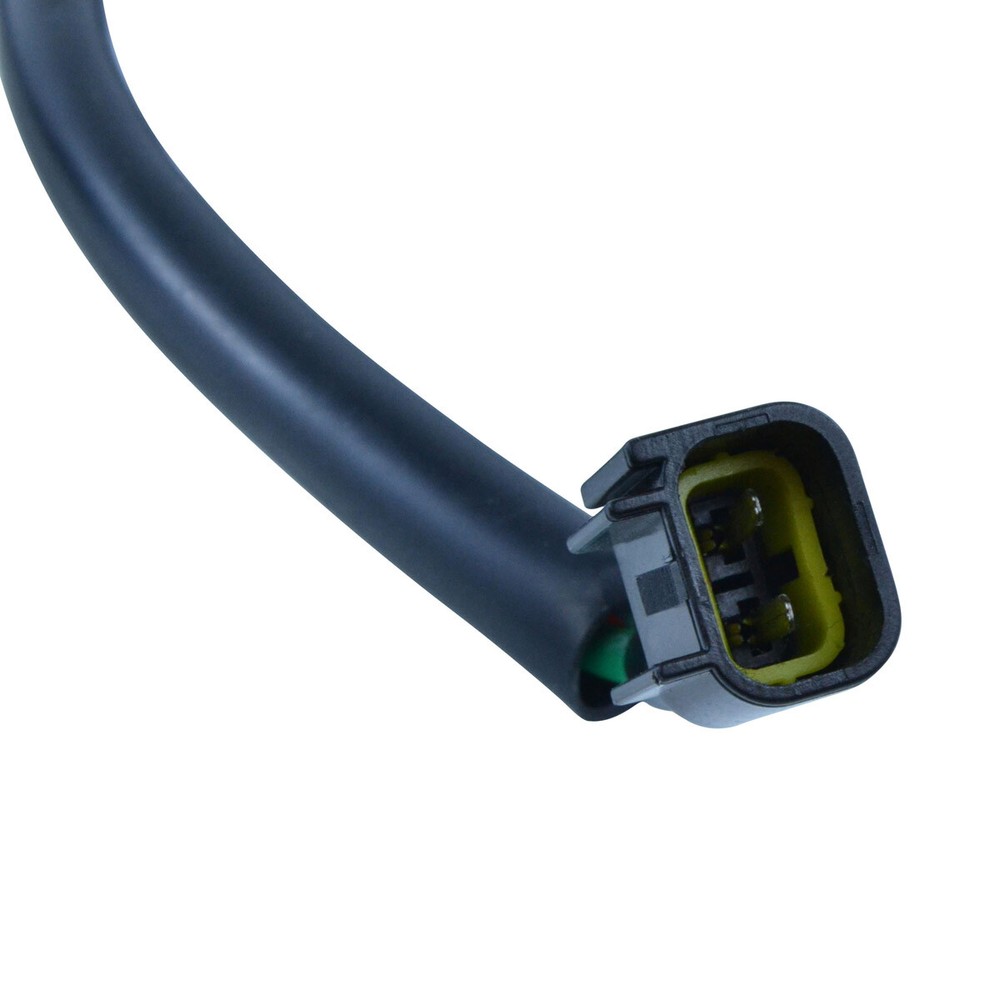

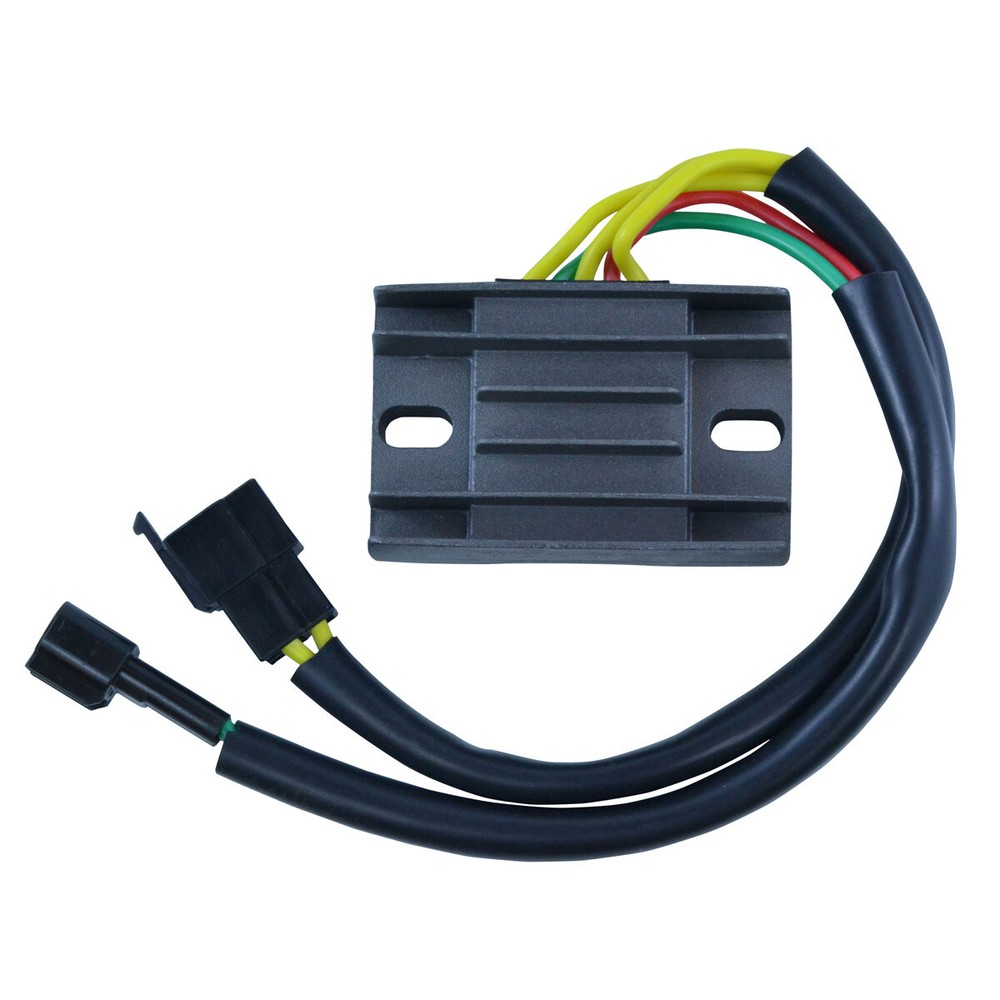

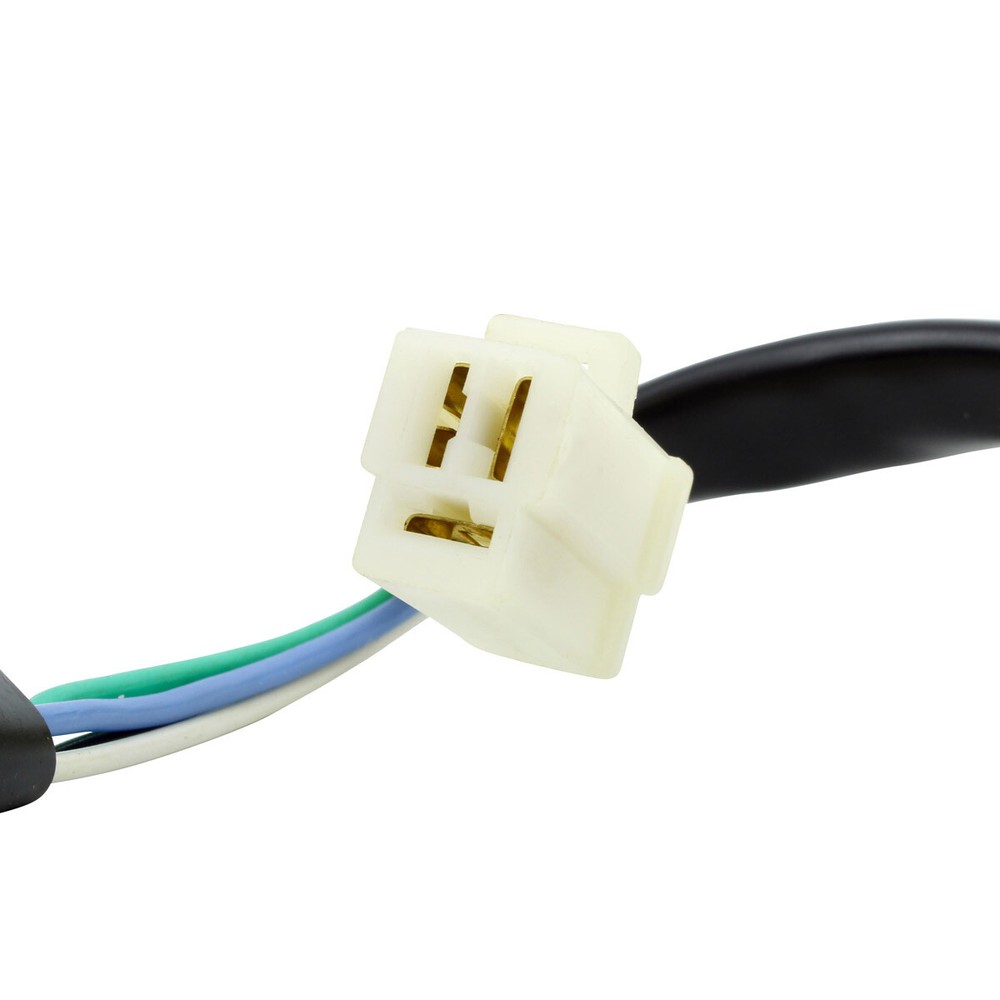

Check the listing for details. Kit Stator + Voltage Regulator Rectifier For Suzuki DRZ E S 400 2000-2016. Condition: New. Listed at 268.00 USD. Free shipping in USA 2 year warranty Same day shipping visit our store > --> find parts for : ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other Menu Store Home ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other Kit Stator + Voltage Regulator Rectifier for Suzuki DRZ E S 400 2000-2016 DRZ400&nbsp KEY FEATURES&nbsp Brand new aftermarket high output stator and voltage regulator rectifier kit Direct replacement to your original unit All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part All products shipped are tested DESCRIPTION&nbsp You save 15% off the items price combined, when buying a kit. Brand new aftermarket high output stator and voltage regulator rectifier kit Direct replacement to your original unit. Plug-and-play, direct fit, easy installation. All product shipped are tested *All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part. Brand new high output aftermarket stator Pick up pulsar coil included Connector included Rubber grommet included Highest grade lamination materials Highest grade copper windings, resistant to 200 degrees Celsius. 20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS. Brand new aftermarket voltage regulator rectifier You must re-install one of your original connectors The Quality exceeds the OEM equipment Improved heat sink and charging capabilities Higher grade of electric components. Vehicle models fitment&nbsp Suzuki DRZ 400 -- 2000-2004Suzuki DRZ 400 E -- 2001-2007Suzuki DRZ 400 S -- 2000-2009, 2011-2016 OEM part replacement&nbsp RM22956-R00 Specifications&nbsp Dimensions Stator : Interior diameter: 34 mm Exterior diameter: 93 mm Thickness: 14 mm Length of wires stator to grommet: 100 mm Length of wires grommet to plug: 400 mm & 600 mm Length of pickup coil's wire to grommet: 110 mm Other specifications: Number of wires: 7 Number of plugs: 2 Number of pins: 7 Wire to wire resistance: Alternator: = 0.4 ohms +/-20% Pickup: = 350 ohms =+/-20% Position Sensor: 0.2 ohms =+/-20% Dimensions Voltage Regulator Rectifier : Width : 48 mm Length : 75 mm Height: 25 mm Fixation holes center to center : 60 mm Other specifications : Number of plugs : 1 Number of pins : 5 Minimum Charging Voltage: 14.5 V +/- 0.5 V Maximum Charging Current: 25 A - 35 A / 300 W - 500 W Open Circuit Voltage: Operation Temperature: -20? to 85? instructions&nbsp Before installing your new stator: Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code then you?re original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010??. Before installing your new regulator/rectifier: Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors. Item Delivery&nbsp Our multiple North American locations, from which we ship our products, allows us to deliver 99.7% of our orders within the specified time period. If your item is not available in our main Colorado facility, we still guarantee that your order will be delivered within the specified time period. If your item is not delivered within this time period, we will offer you a 5.00$ discount on your order. This guarantee applies to shipments delivered in the 48 continental USA states, excluding PO boxes. customer service AsK seller a question duties & taxes International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. More than 20 years of assisting mechanics around the world resolving the worst electrical problems made us know our stuff. When it comes to vehicle electrics, we definitively are the power in powersports. Customer service Part requestAbout usAbout seller pageAdd seller to favorite
